DIN Rail Electric Meter Box

Lub teb chaws tuaj: Suav teb
Hom: ZHONGFEIYA TECH
Kev lag luam hom: hluav taws xob enclosure manufacturers
Cov khoom, qhov loj me thiab lwm yam kev xav tau yog customized.
Thov ua siab zoo qhia peb cov khoom twg koj txaus siab&tus nqi tsim nyog yuav muab rau koj thaum tau txais koj qhov kev nug tshiab ASAP.
daws teeb meem nrog koj thaum siv peb cov khoom.
Ntau peb cov khoom koj tuaj yeem tuaj xyuas peb lub vev xaib.

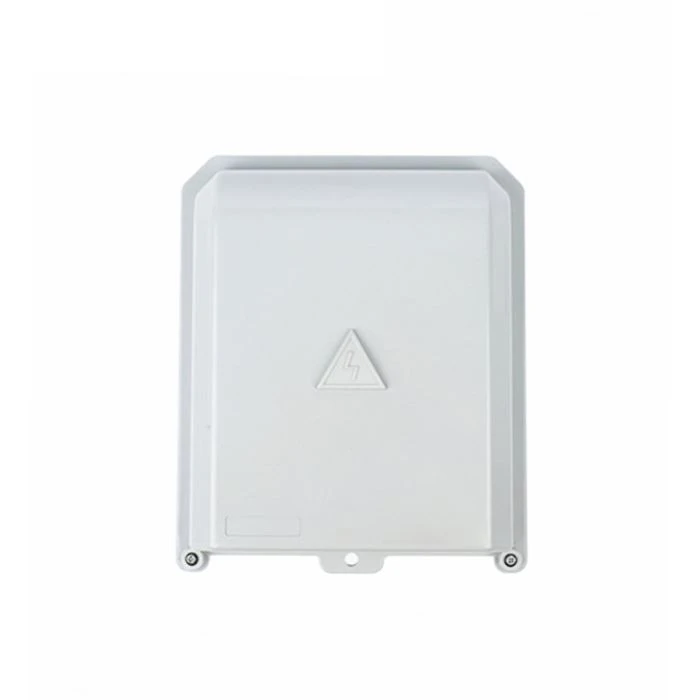

DIN Rail Electric Meter Box

Product Description

DIN Rail Electric Meter Box yog siv rau ib theem DIN rail meters. Nws txais cov khoom siv polycarbonate nrog kev tiv thaiv siab IP54 uas yog rau sab hauv tsev thiab sab nraum zoov. Nws muaj cov yam ntxwv ntawm kev tiv thaiv plua plav, tsis muaj dej, UV tsis kam, qib nplaim hluav taws kub thiab lub zog siab, uas tuaj yeem ntsia tau rau ntawm phab ntsa lossis ntawm tus ncej.

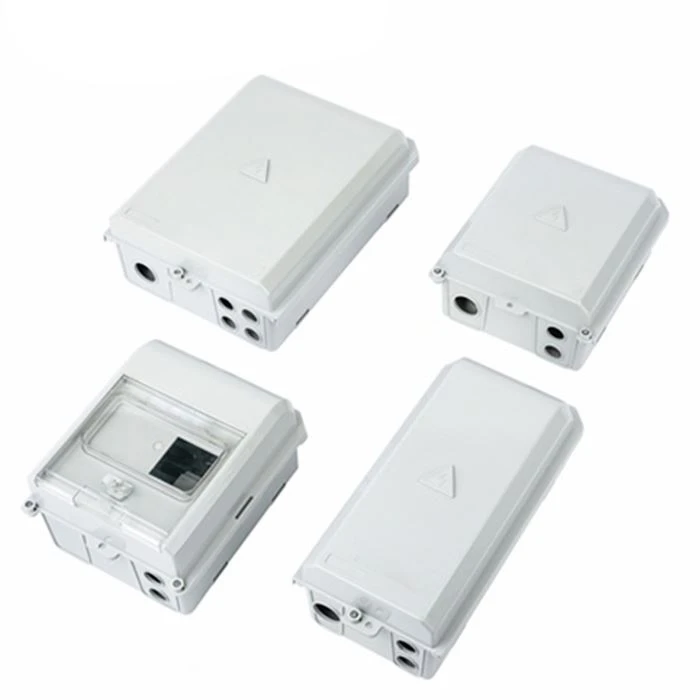

1-Single Phase 1 Way Plastic Din-Rail Meter Box (3)

Khoom Specification

Dimension	1way: 271 * 220 * 128mm 2way: 364 * 180 * 128mm 4way: 365 * 270 * 128mm
Installation Fais fab Grid	220V~240V
Insolation voltage	400V
Max.Tam sim no	240A
Khoom siv	Rwb thaiv tsev polycarbonate; Siv polycarbonate Pob tshab npog lub ntsiab
Txoj hauj lwm	1 txoj kev; 2 txoj kev; 4 txoj kev;
Hom kev teeb tsa	Phab ntsa mounting / Ncej mounting
Qhov chaw teeb tsa	Sab hauv / Sab nraum zoov
Chav kawm tiv thaiv	IP54
Seismic Capacity	ib 08
Fireproof Performance	UL94-V0

DIN Rail Electric Meter Box-Ib Txoj Kev 271 * 220 * 128mm

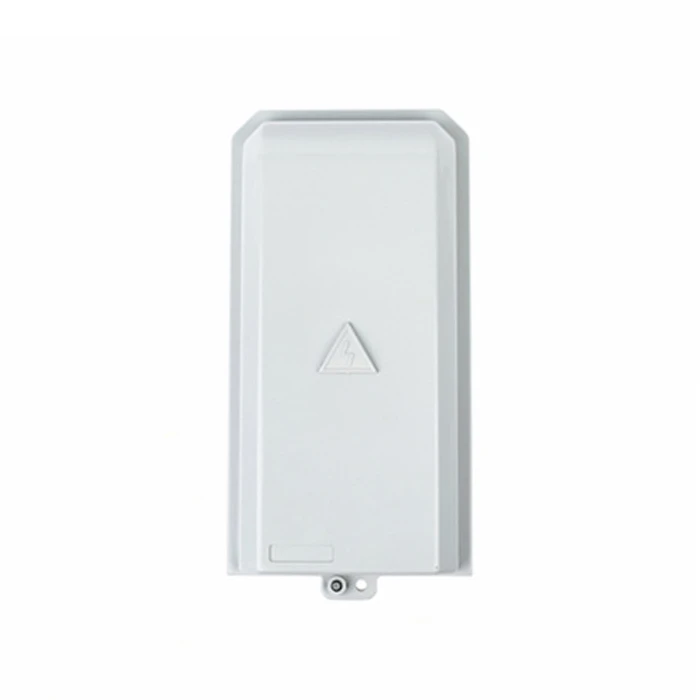

DIN Rail Electric Meter Box-Ob Txoj Kev 364 * 180 * 128mm

DIN Rail Electric Meter Box-THREE Ua365 * 270 * 128mm

4-Single Phase 4 Way Din-Rail House Meter Box

20210825160000bab256e12704446f86df814edd4dac47

20210825155957bbd6c051bccb4bd2a5e609b06e5497c8

ZFY TECH (4)

ZFY TECH (3) FAQ:

Q1: Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog cov kws tshaj lij kev lag luam adapter chaw tsim khoom, peb lub Hoobkas tau tsim rau 7 xyoo.

Q2: Koj lub lag luam loj yog dab tsi?
A: Feem ntau yog Europe thiab Amelikas, tom qab ntawd Australia, South Africa

Q3: Lub sijhawm ntev npaum li cas los ua tus qauv?
A: 3-7 hnub yog tias peb ua tus qauv tshiab rau koj.
Yog tias koj tsuas yog xaiv peb cov qauv uas twb muaj lawm, peb tuaj yeem xa koj cov qauv rau hnub tom qab.

Lub sij hawm ua:
10-30 hnub, nws nyob ntawm qhov ntau thiab ntsaws nws tus kheej.

Q4: Muaj pes tsawg hom pob?
A: Peb muaj lub thawv dawb (dawb), hnab, hlwv, lub thawv khoom plig, lub thawv dub thiab cov ntaub ntawv PVC thiab lwm yam.

Q5: Vim li cas tus qauv tshiab kim dua lwm cov qauv qub?
A: Tus qauv tshiab xav tau loj R& D thiab pwm tus nqi, thiab tus nqi depletion yog loj dua thaum pwm thiab ntau lawm. Tsis tas li ntawd, cov qauv tshiab yog qhov tsim tau tsawg tab sis cov nqi zog ua haujlwm zoo ib yam li cov qauv qub.

Q6: Koj muaj ntawv pov thawj dab tsi?
A: Peb tau pom zoo ISO9001, CE FCC ROHS SGS thiab lwm yam ntawv pov thawj.
